Huawei 2288H V5 Server Barebone System 8*2.5 Disk Positions for Mainstream Superfusion

Name: Huawei 2288H V5 Server Barebone System 825 Disk Positions for Mainstream Superfusion
Brand: Huawei
Price: 1 USD

Wholesale Huawei 2288H V5 Server Barebone System 8*2.5 Disk Positions for Mainstream Superfusion from china suppliers

Private Mold : Yes

Products Status : Stock, Stock

Type : Rack

Processor Main Frequency : other

Processor Type : Intel Xeon series, Intel Xeon series

Brand Name : Huawei

Model Number : 2288H V5, 2288H V5

Place of Origin : Beijing, China

Form Factor/Height : 2U Rack

Power supply type : 550W/900W/1500W/1200W

Memory slot : 24 DDR4 RDIMM

Hard disk location : 8*2.5inch

GPU : Supports two full-height Gpus

Network port : Double port gigabit

PCIe : 10 PCIe3.0 expansion slot

Price : $1,085.00/pieces 1-4 pieces

MOQ : 1 unit

Contact Now

Product Description

Huawei 2288H V5 Server Barebone System 8*2.5 Disk Positions for Mainstream Superfusion

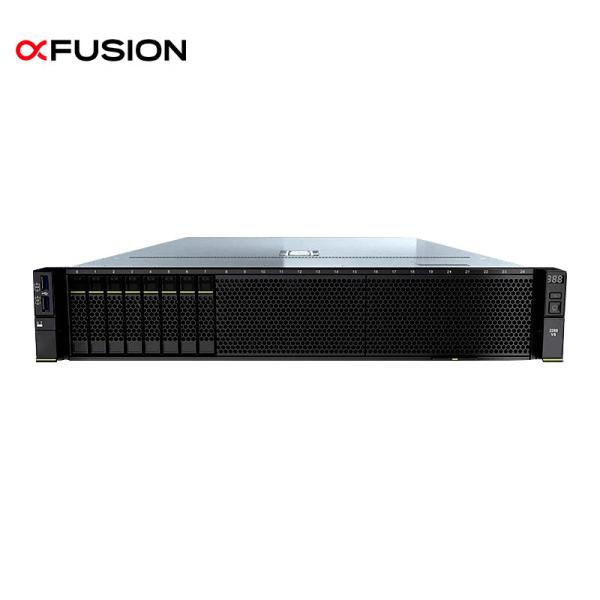

FusionServer 2288H V5 Rack Server

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

Smart Power Savings and Better Energy Efficiency

Leverages patented DEMT for smart power management, slashes power consumption by up to 15% without affecting performance, and uses 80 Plus® Titanium PSUs for better energy utilization

Unmatched Intelligent Manageability and Openne

Supports smart O&M across the entire lifecycle and FDM for diagnosis with accuracy of up to 93%
Provides standardized and open interfaces, facilitating integration with third-party management software

Specification

Parameter	Description
Model	FusionServer 2288H V5
Form Factor	2U, 2-socket rack server
Processors	1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory	24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s
Local Storage	Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Power Supply	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
Processor Type	intel xeon silver 4210R*2
Processor Main Frequency	2.4Ghz
Form Factor/Height	2U Rack
Products Status	Stock
Power	550W
Memory slot	24 DDR4 RDIMM
Hard disk location	8*2.5inch
GPU	Supports two full-height Gpus
Network port	Double port gigabit
